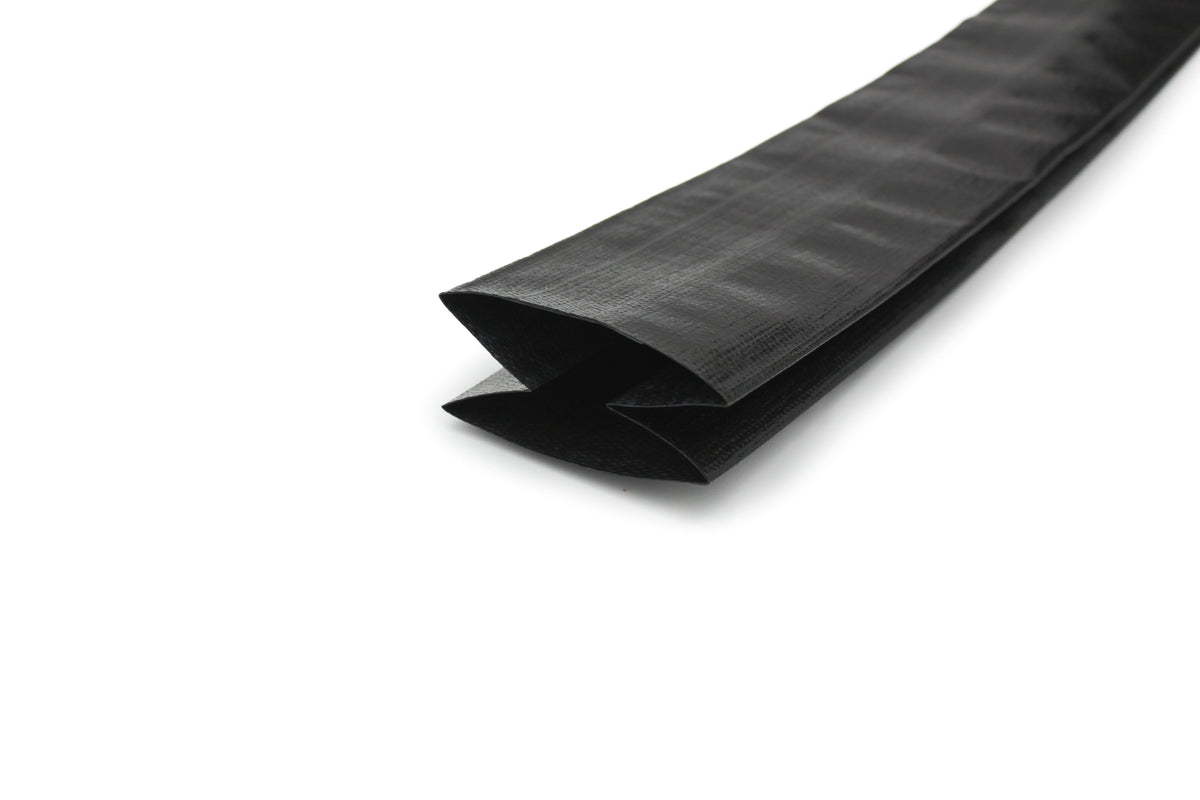

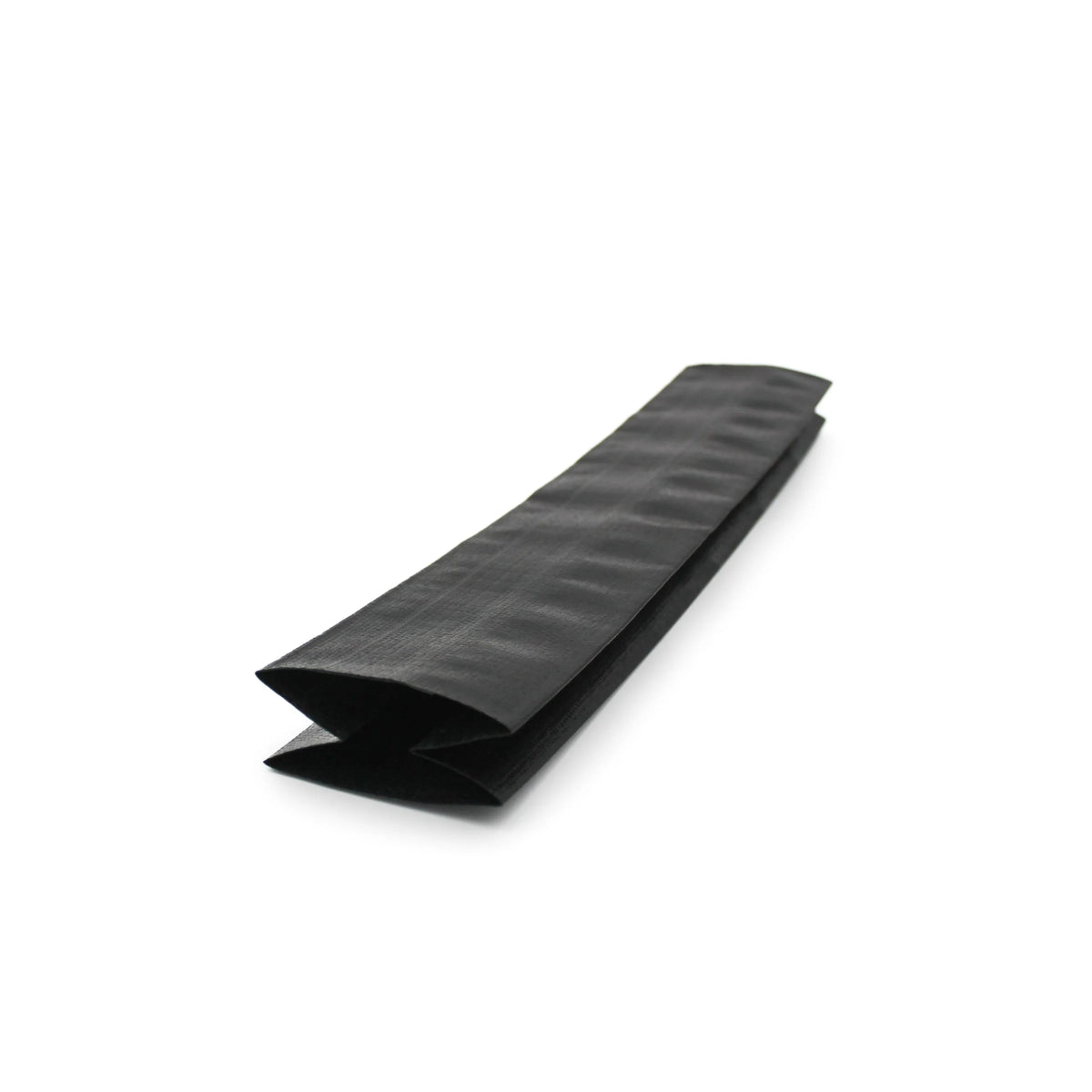

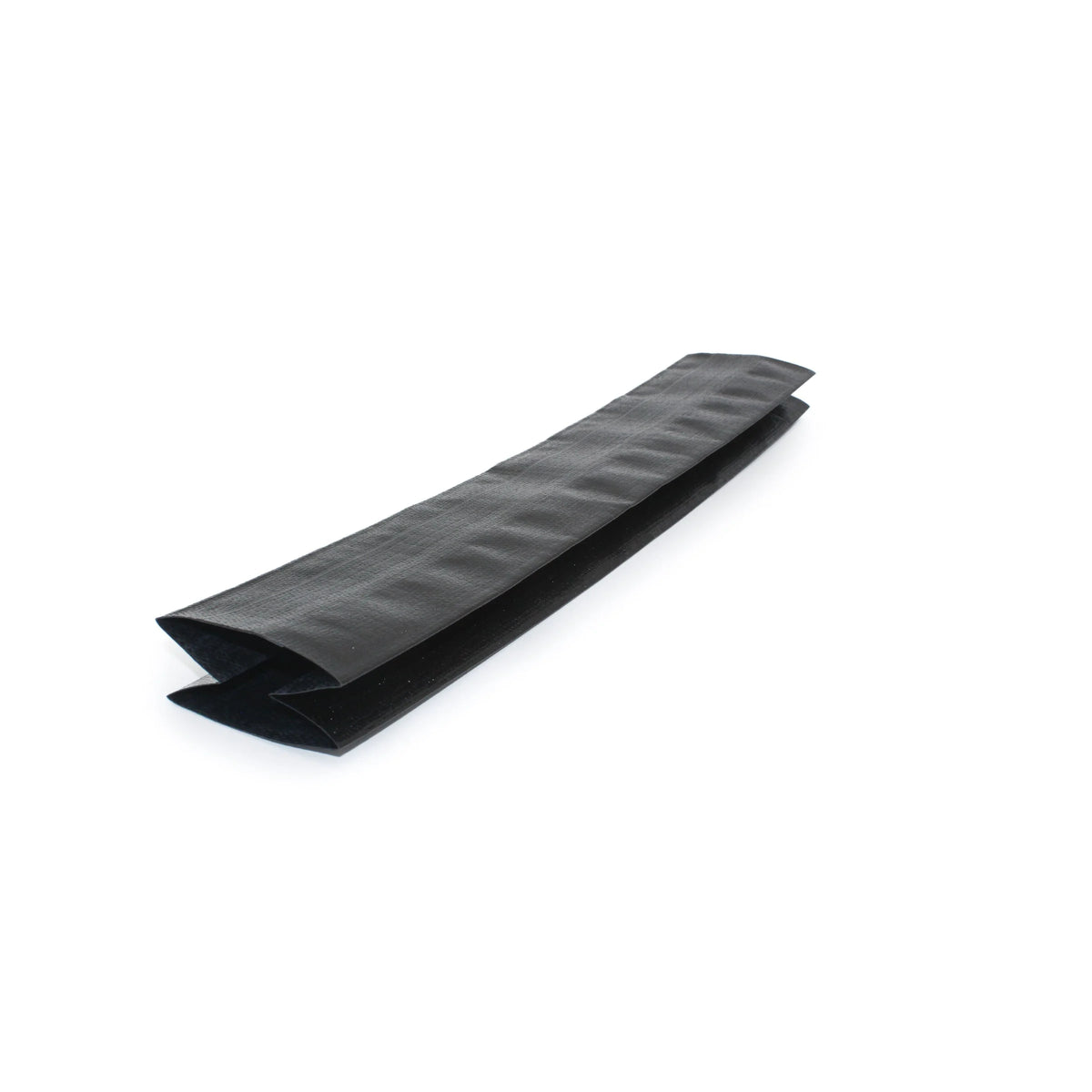

BLASTSHIELD™ Plus Blasthole Liner
BLASTSHIELD™ Plus is specifically designed as an ultra-high strength barrier material for blast holes in water logged or wet conditions and/or where cracks and voids occur. The patented gusset folds make loading simple.
Live pricing and same-day-ship priority once you're in. Setup takes 60 seconds — we just need to confirm you're a real operation.
- P.O.
Why BLASTSHIELD™ Plus Blasthole Liner
Ultra-high strength
Multi-layer laminated polymer withstands insertion, loading, and stemming forces.
Why it matters: The liner survives the loading process intact. No tears, no rips, no compromised holes.
Internal lamination
Inner lamination layer creates a sealed barrier against water and chemical attack.
Why it matters: Your explosive charge stays dry and at full energy. No desensitization from water contact.
Prevents water ingress
Keeps groundwater out of the loaded hole from collar to toe.
Why it matters: Eliminates water-related misfires and maintains designed powder factors across the bench.
Easy gusset installation
Pre-formed gusset at the base opens naturally as you lower the liner into the hole.
Why it matters: Drops in clean without snagging. Faster installation means more holes lined per shift.
Antistatic additives
Built-in antistatic compounds prevent static charge buildup during handling.
Why it matters: Safe around all explosive types during loading. No discharge risk from friction or movement.
Lightweight material
Light enough for one person to carry and install without strain.
Why it matters: Crews move faster between holes. No heavy lifting, no extra labor needed for lining work.
Built for the bench.
Ultra-high tensile
Ripstop, internally laminated, woven construction. Built for the longest, deepest, hottest, wettest holes you have.
Stops fume events
Used by a Powder River Basin coal miner under WDEQ notice to eliminate cast-blast fume events — 100% gone after deployment.
Stops emulsion loss
Paired with the AERO, eliminated emulsion slumping in wet upholes for an underground gold operation in Ghana.
Built for every condition.
Hot coal seams (PRB fume)
Cast-blast fume events come from contact between explosive and hot ground. The BLASTSHIELD PLUS™ liner is the proven barrier.
Wet underground upholes
Groundwater flushes emulsion out of long upholes. Liner + AERO stops the slumping and lets you charge in one pass.
Deep angled holes
Tested in production at 39.6 m / 130 ft at 25°. 300 holes per blast panel. 311 mm diameter.
Specs, storage & more.

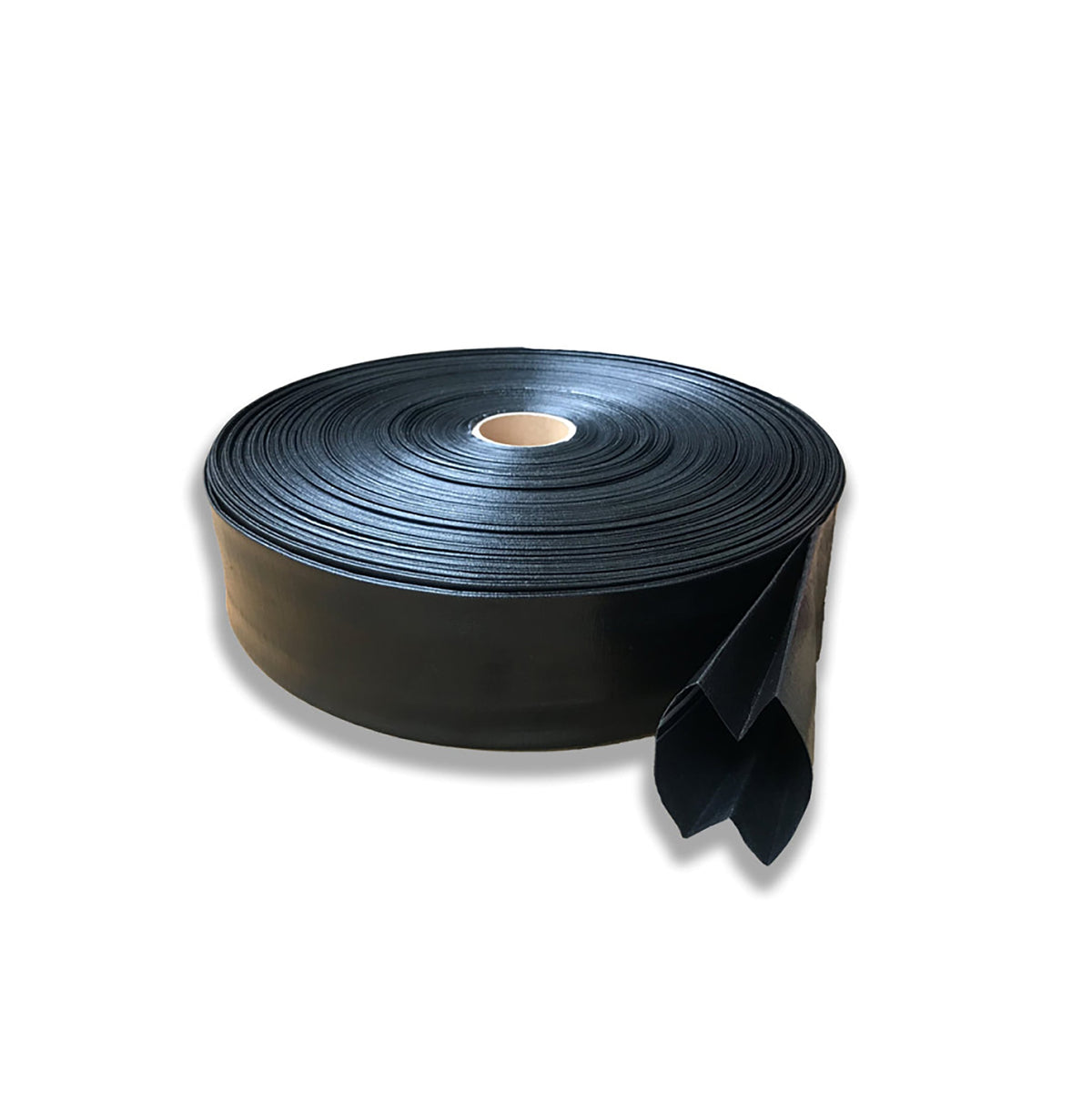

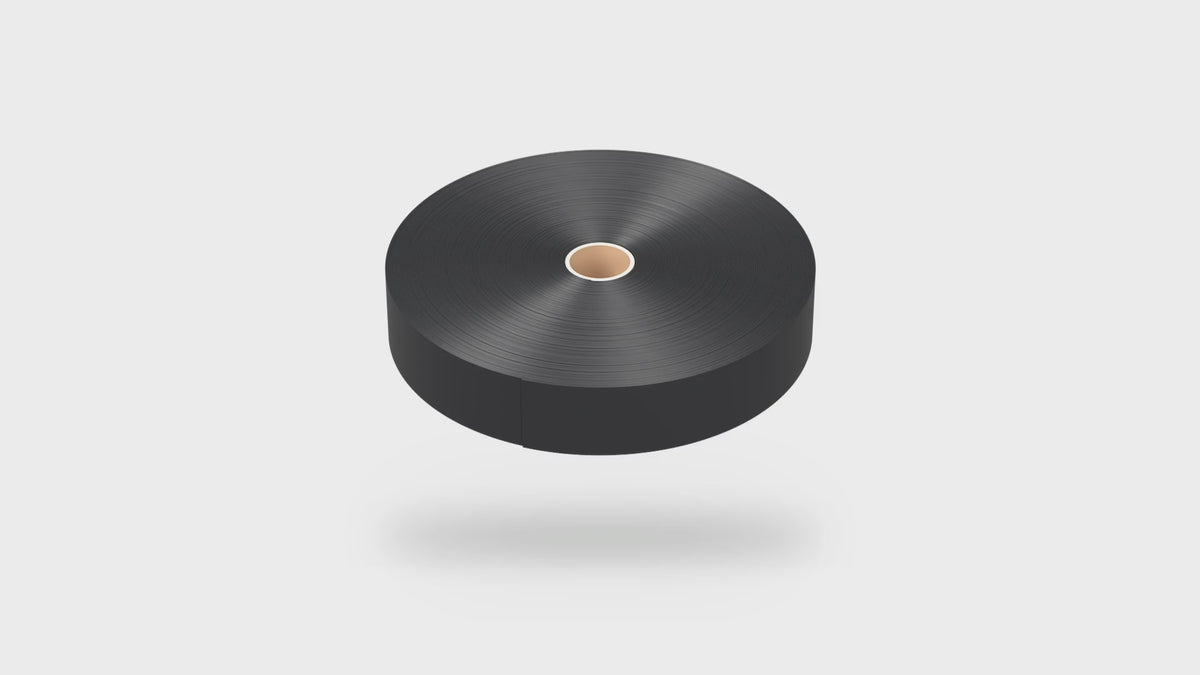

| 08-120 | 3" x 328" / 76mm x 100M — Roll |
| 08-122 | 4" x 328" / 102mm x 100M — Roll |
| 08-123 | 4.5" x 328" / 115mm x 100M — Roll |
| designed to comply with AS 2187.2 | 2008 Explosives - failure of lamination resulting in product leakage. |
| Length | 23" |
| Width | 4" |
| Height | 23" |
| Weight | 23lbs |
| Non-flammable | Yes |
| Non-sparking | Yes |
| Pack size | Roll |
