Inflation Assemblies

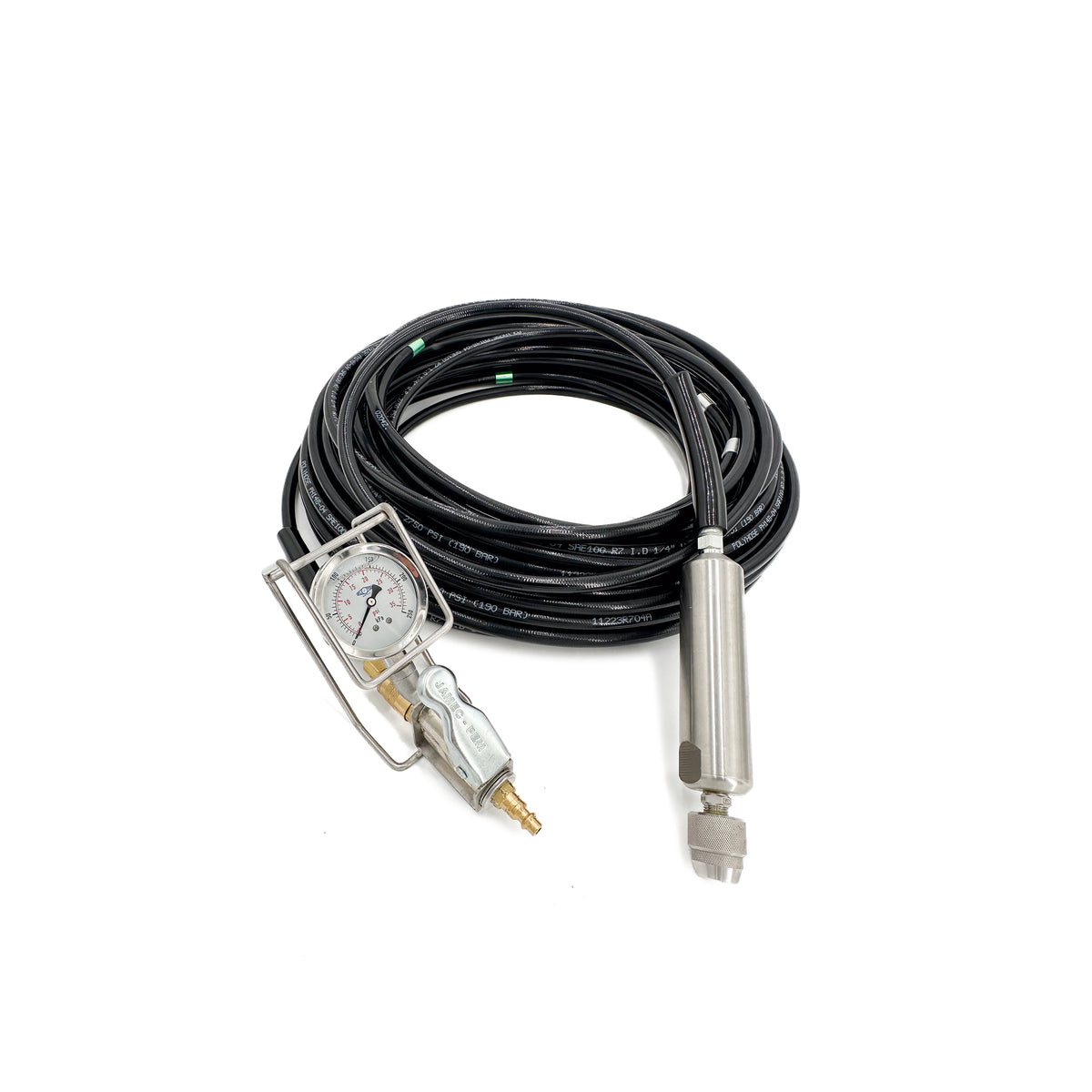

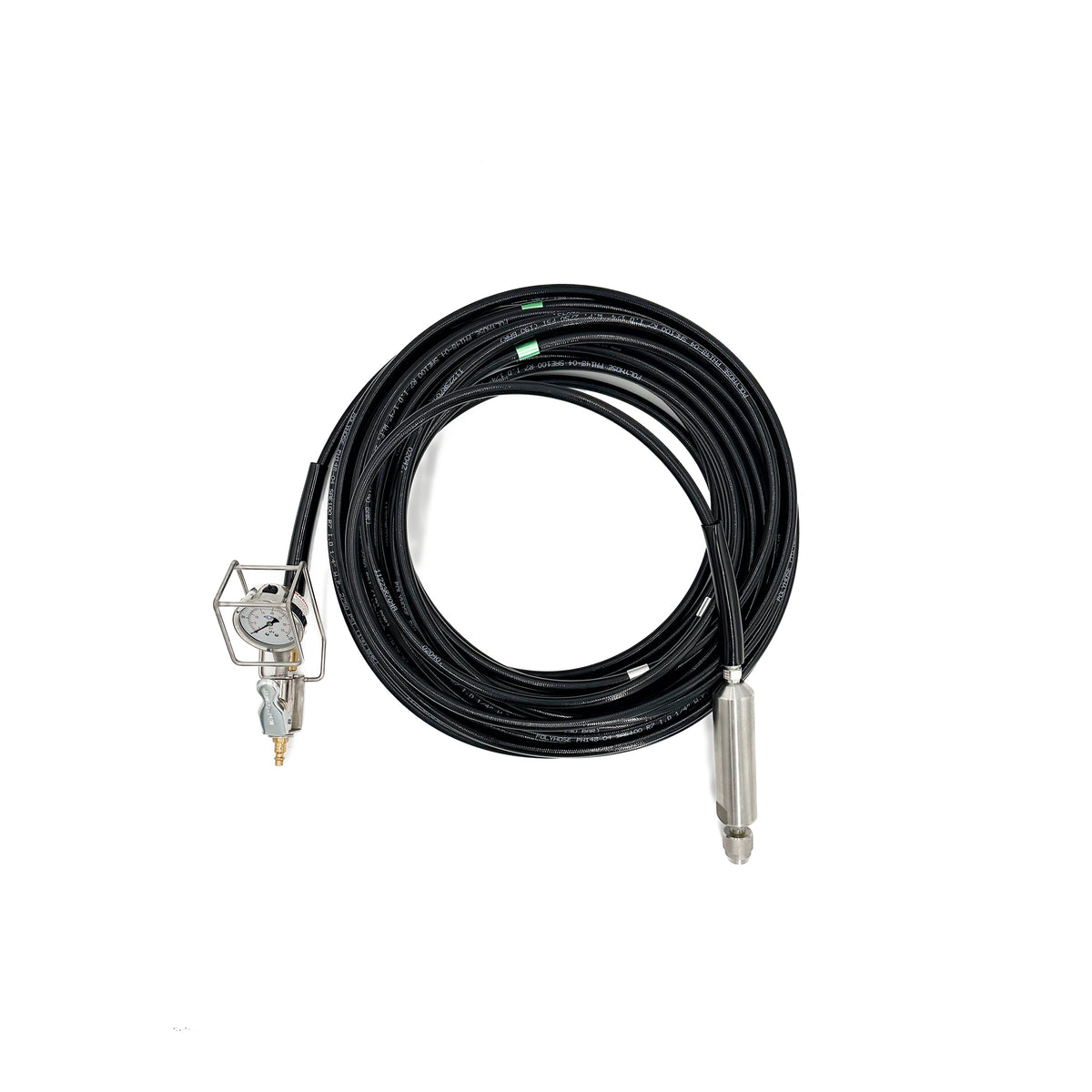

Dropline + Handheld Inflator + Weighted Coupling
Live pricing and same-day-ship priority once you're in. Setup takes 60 seconds — we just need to confirm you're a real operation.
- P.O.
Built for the bench.
Complete kit
Everything needed to inflate a BLASTBAG AERO™ on the bench — couplings, hoses, regulator.
Engineered to spec
Sized to deliver the right pressure to the bag. No improvising with off-the-shelf parts.
Specs, storage & more.
| Pack size | Each |
Pick the right one.
Every time.
Detailed Comparison
 Underground Inflation Hose Reel
|
 Inflation Assemblies
|
 Handheld Inflator
|
 Dropline Inflation Hose
|
 Inflation Coupling
|
 BLASTBAG™ AERO
|
 BLASTBALL™
| |
|---|---|---|---|---|---|---|---|
| What It Does | Complete plug-and-play air service unit — hose, inflator/deflator, gauge, AB-C coupling on weighted end | Bundled kit — Dropline + Handheld Inflator + Weighted AB-C Coupling | Portable inflator with gauge and stainless steel cage | Teflon-lined thermoplastic hose with anodized depth crimps every 5 m / 10 ft | Patented snap-on coupling that connects the dropline to the bag's air valve | Air-inflated gas bag — the product this kit serves | Air-inflated wet-hole plug — the product this kit also serves |
| Sizes / Specs | 50 m / 164 ft (10-001) or 100 ft / 30 m (10-002). Gauge to 35 PSI. Working pressure 10 – 300 PSI | 25 ft, 60 ft, 100 ft, or 50 m kits (10-029 through 10-032) | Gauge to 36 PSI. Max rated 200 PSI. Nitto fittings. Inflate + deflate | 25 ft / 5 m (01-988), 60 ft / 18 m (01-989), 50 m / 164 ft (10-009), 100 ft / 30 m (10-010) | Diamond Knurl (02-001, $114) or Complete Hose End Replacement w/ Weight (02-024, $409) | 2 SKUs cover 2.5" – 12.25" / 64 – 311 mm | 3 SKUs cover 2.5" – 8" / 64 – 203 mm |
| Connects To | Mine air via ¼" BSP. Output to BLASTBAG™ AERO or BLASTBALL™ | Mine air via Handheld Inflator. Output to BLASTBAG™ AERO or BLASTBALL™ | Mine air via ¼" BSP. Output to AB-C Coupling or Dropline | Inflator or UGHR on one end, AB-C Coupling on the other | Dropline (¼" BSP) on one end, BLASTBAG™ AERO or BLASTBALL™ air valve on the other | AB-C Coupling on the bag valve | AB-C Coupling on the valve |
| Best For | Crews that want one cart, no assembly, ready to deploy | Sites building their own kit at common dropline lengths | Crews working benches without service air at the hole, or repositioning bags | Replacement, spare, or building a custom-length kit | Replacement coupling, or full hose-end rebuild | Underground production and air decking. Full positioning on the BLASTBAGS™ page. | Wet holes, breakthroughs, cracked ground. Full positioning on the Stemming Plugs page. |
Swipe to see all columns →
Pick the UGHR when you want a complete air service unit with no assembly. Teflon-lined hose, pneumatic inflator/deflator, gauge to 35 PSI, anodized depth crimps, weighted AB-C coupling on the end. 50 m (164 ft) or 100 ft (30 m) hose options. Plug into mine air via ¼" BSP and you're ready. Working pressure 10 – 300 PSI — covers every BLASTBAG AERO and BLASTBALL spec. Best-in-class for production underground sites running daily air decks.
Pick the Inflation Assembly when you want the same kit as the UGHR but without the reel — three components pre-packaged at a common dropline length. Includes Dropline + Handheld Inflator + Weighted AB-C Coupling. Four lengths: 25 ft, 60 ft, 100 ft, and 50 m. Cheaper than the UGHR, simpler than building from parts, and field-portable.
Pick the Handheld Inflator when you're working benches without service air at the hole, or you need to reposition a bag before final inflation. Stainless steel cage, Nitto fittings, gauge to 36 PSI, rated to 200 PSI max. Inflates and deflates. Pair with any Dropline Hose and AB-C Coupling to build a portable kit.
Pick a Dropline Hose when you need a specific length not covered by the standard kits, or you're replacing the hose on an existing setup. Teflon-lined thermoplastic, designed for repeated tensile loading from lowering inflated bags. Crimps every 5 m / 10 ft tell the operator exactly how deep the bag is. Sizes: 25 ft (5 m), 60 ft (18 m), 50 m (164 ft), 100 ft (30 m). All metals are stainless steel — explosives-compatible.
Pick an Inflation Coupling when you need a replacement, a spare, or a full hose-end rebuild. The AB-C is MTi's patented snap-on connector — pushes onto the bag's air valve to inflate, pulls free under load to leave the inflated bag at depth. Two versions: AB-C Diamond Knurl (02-001, $114) is the coupling alone. The Complete Hose End Replacement (02-024, $409) is the whole end of the dropline — weight, ferrule, tail, nipple, and coupling — ready to swap onto a worn hose.
The air-operated gas bag this kit serves. Compressed air, dual-bladder construction, snap-on AB-C coupling. Two SKUs cover 2.5" to 12.25" (64 – 311 mm). Underground production, air decking, uphole capping. See the BLASTBAGS collection for full positioning, sizing, and case studies.
The wet-hole-rated air-inflated plug this kit also serves. Hermetic bladder with tire-strength nylon webbing. Three SKUs cover 2.5" to 8" (64 – 203 mm). Lower it through water, inflate to seal a breakthrough, crack, or void. See the Stemming Plugs collection for full positioning.
